Product Spec
Axle
Aluminum rear axle with tool-free removal and captive-thread endcaps.
Compatibility
Compatible with 32-57mm tire width. 38-47mm is recommended for optimal tire profile. Max pressure: 60 psi / 4.1 bar
Drilling
24 hole

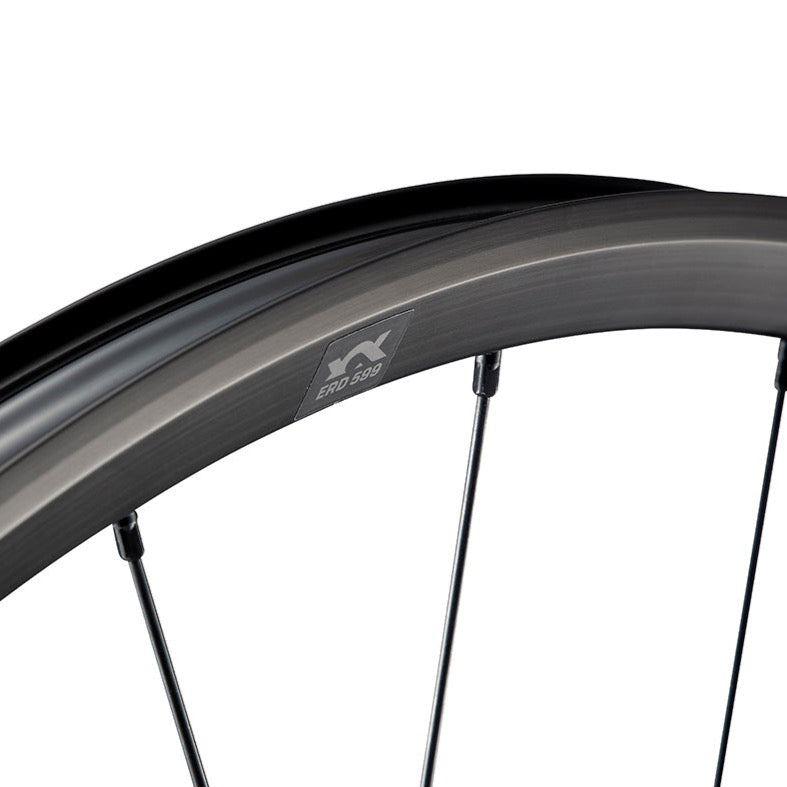

ERD
599
Features
Easy Tubeless Setup with shallow, comfortable rim profiles. Tool free rear hub axle removal.

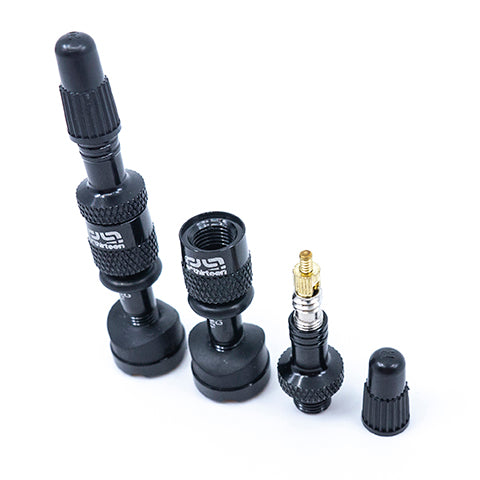

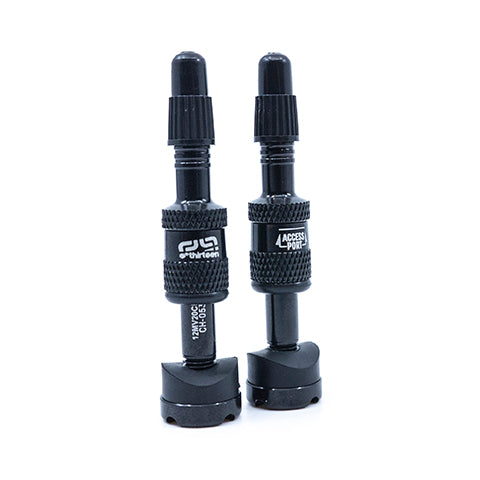

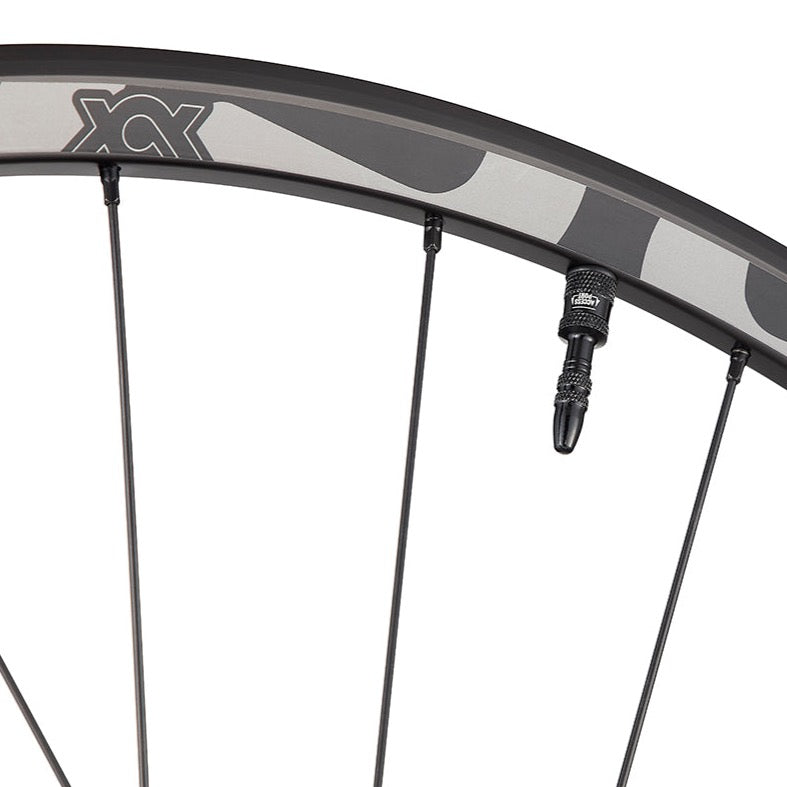

Taped with included valves installed.

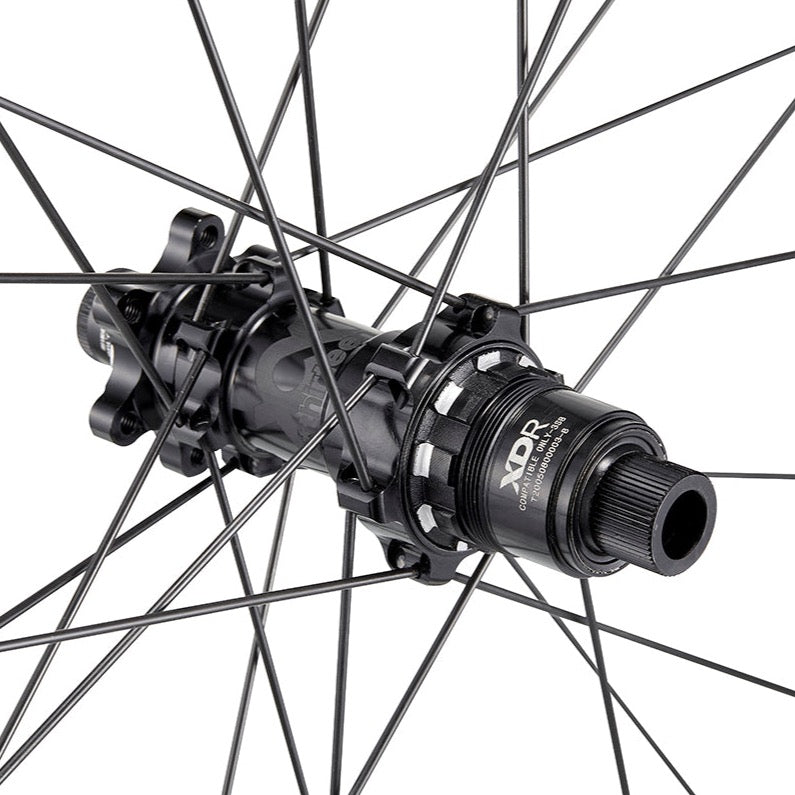

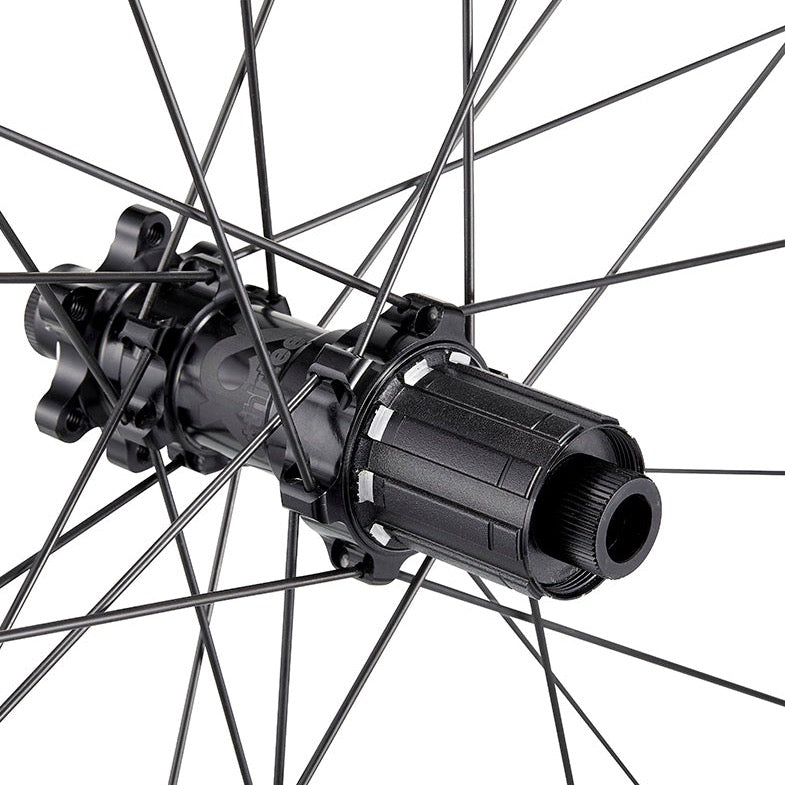

Freehub Mount
XDR™, HG™ or N3W™
Hub

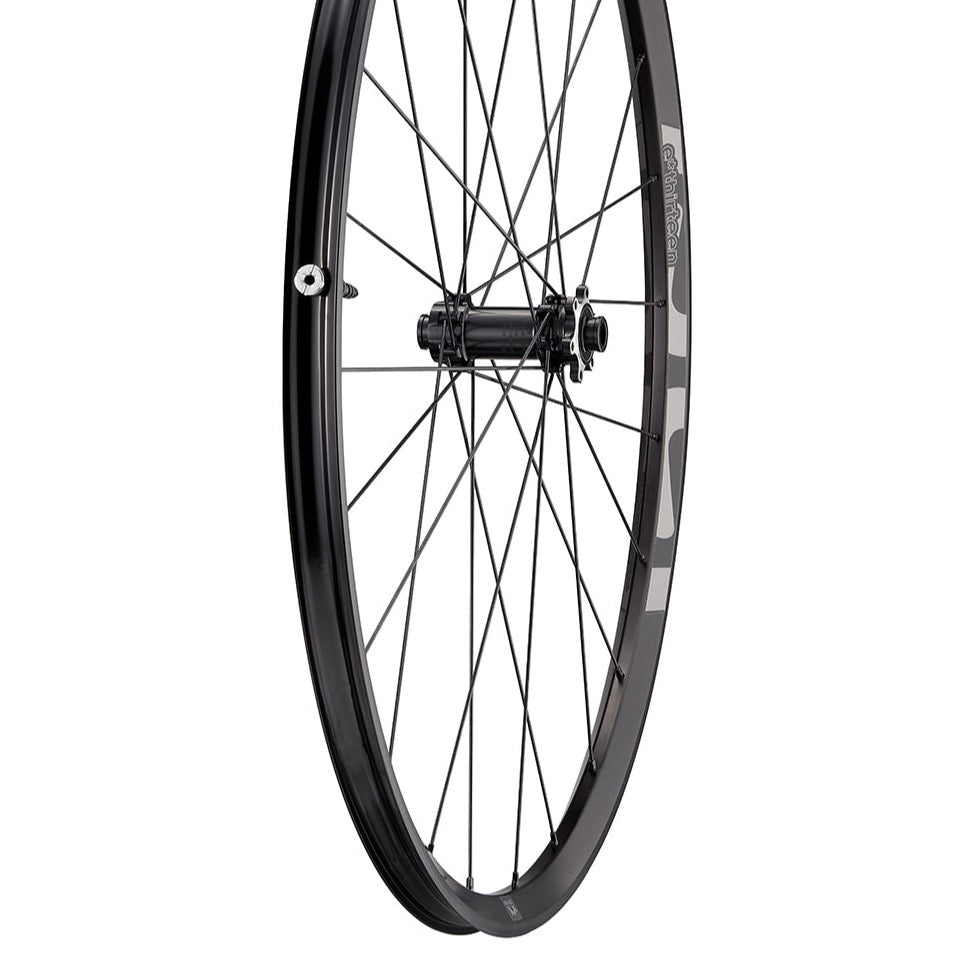

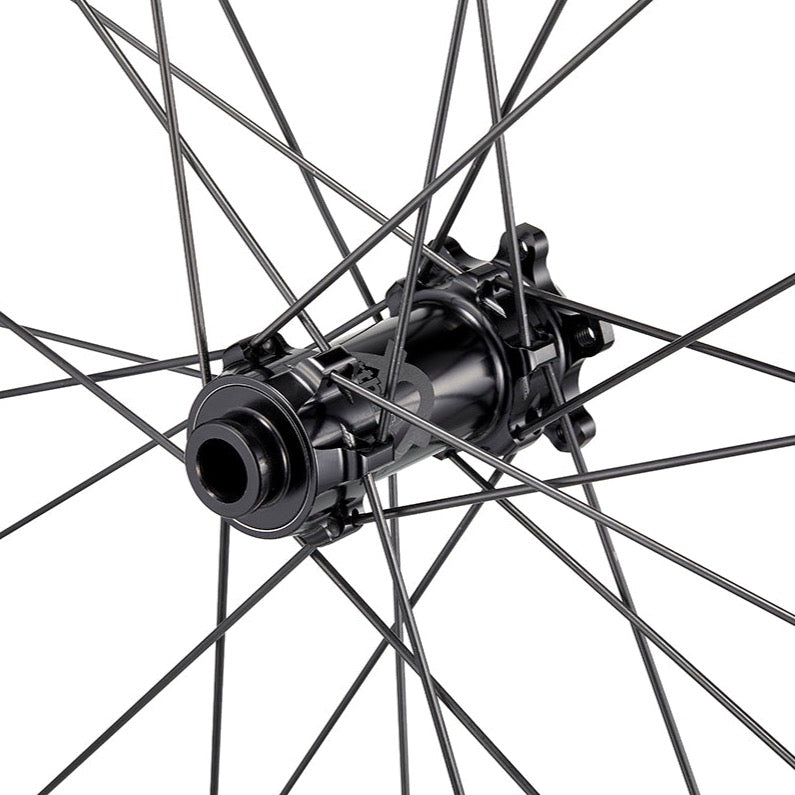

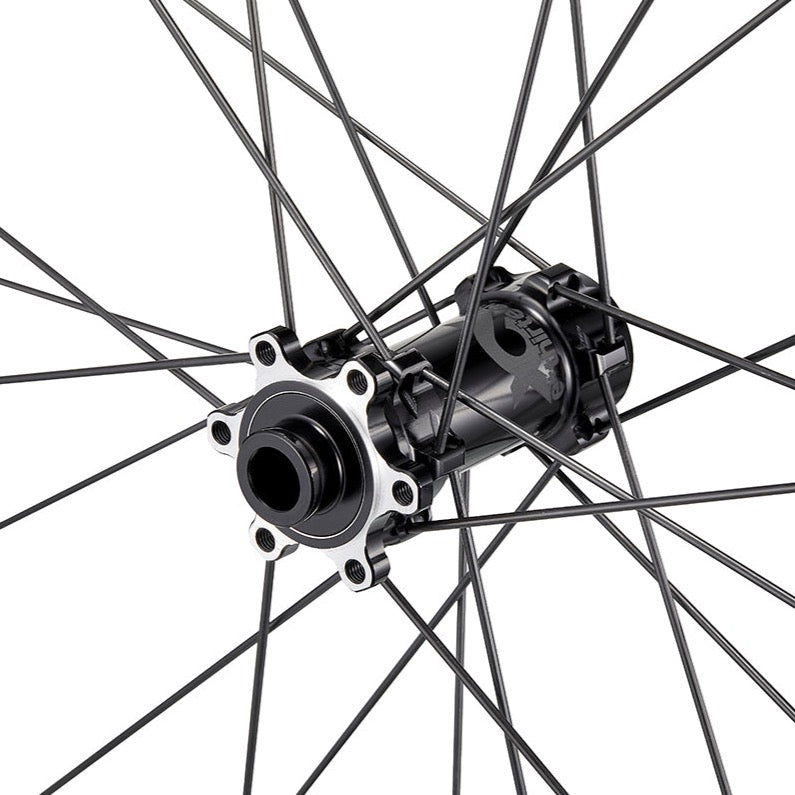

Front: 100 X 12/15, 6-bolt

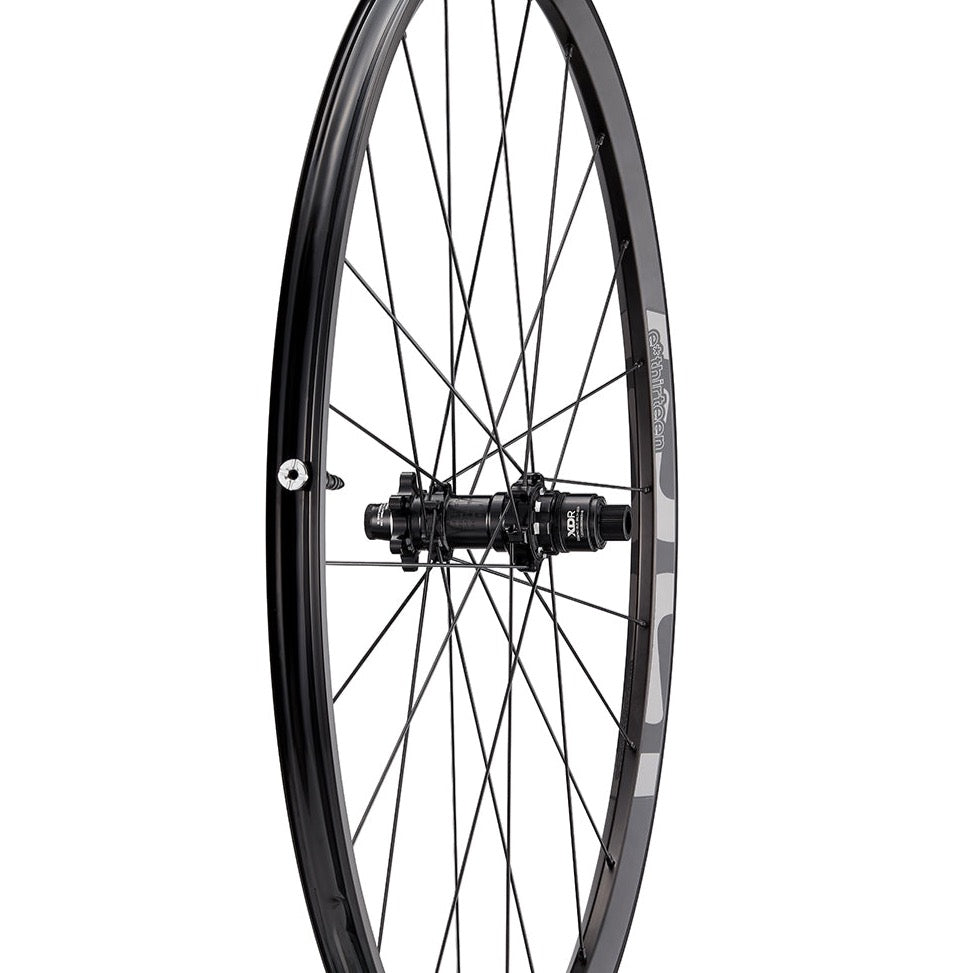

Rear: 142 X 12. 6-bolt
Included
12mm and 15mm endcaps, spare spokes and nipples. Tape and valves installed.
Spokes/Nipples
Straight pull Sapim spokes/Brass nipples
Weight
Single wheel weight w/valves + tape
Front: 835g
Rear XDR: 958g
Front: 835g
Rear XDR: 958g
Width
IW24
Tech Info
User manual
How-to install
Frequently Asked Questions
Guaranteed to be free from
defects in materials or workmanship
for 5 years after original purchase
