Product Spec
Axle
Aluminum rear axle with tool-free removal and captive-thread endcaps.
Compatibility
Compatible with 32-57mm tire width. 38-47mm is recommended for optimal tire profile.
Drilling
24 hole

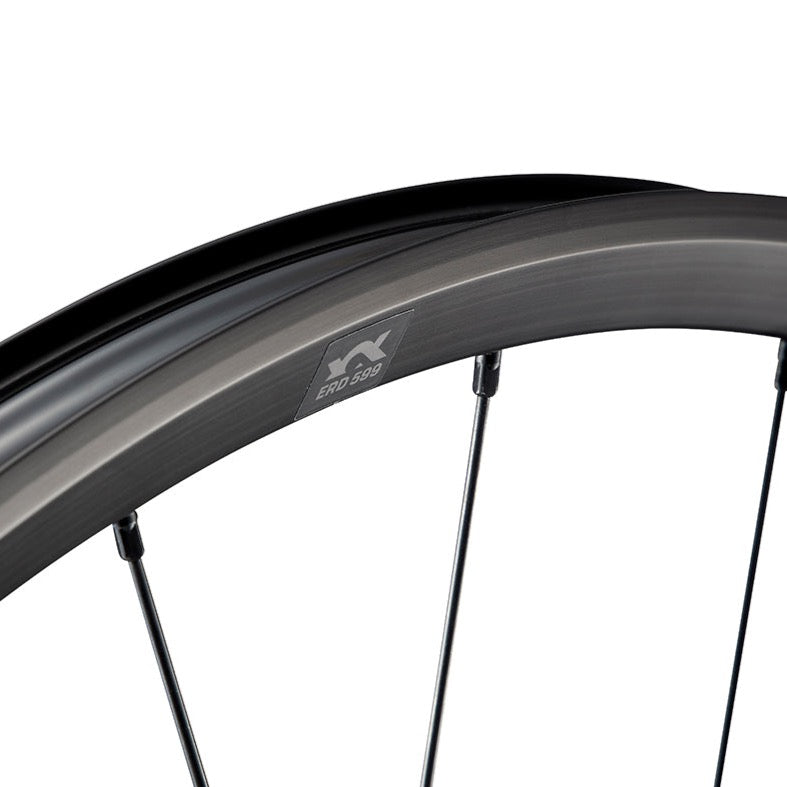

ERD
599
Features
Easy Tubeless Setup with shallow, comfortable rim profiles. Tool free rear hub axle removal.

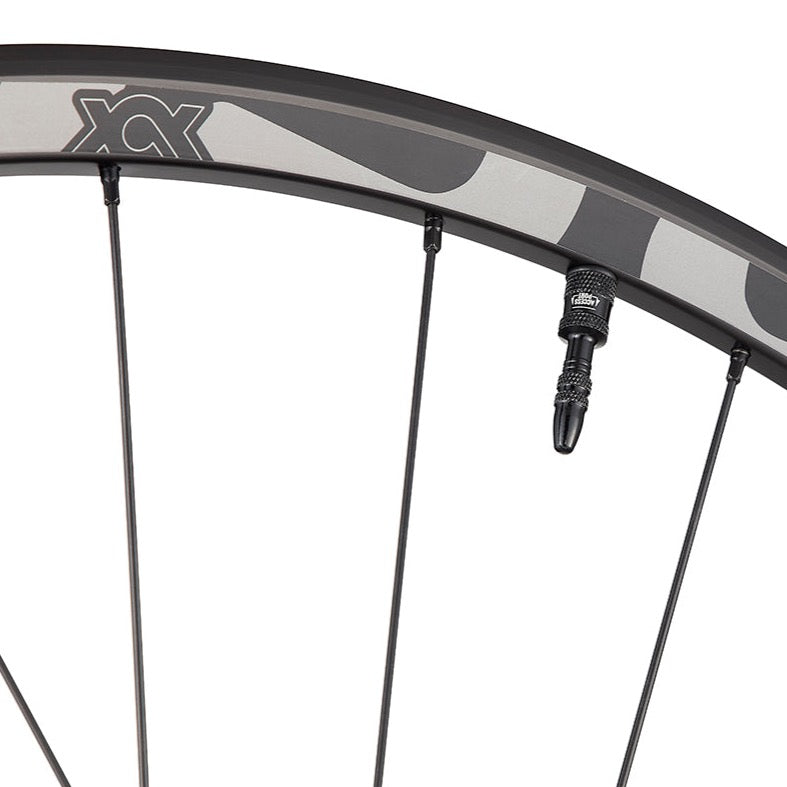

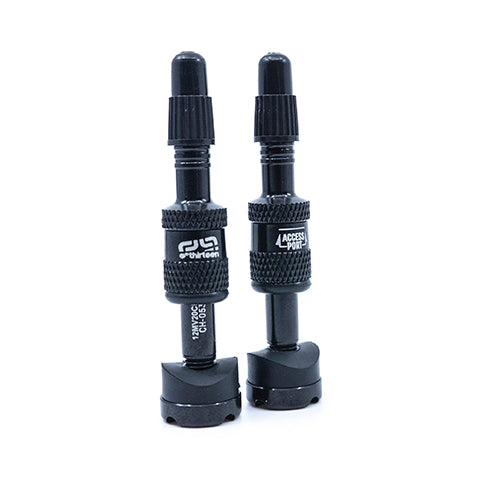

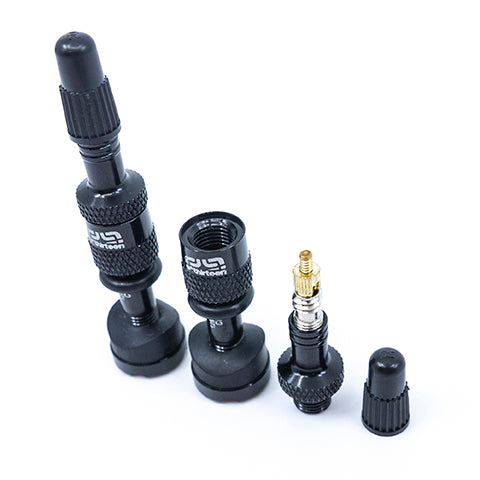

Taped with included valves installed.
Freehub Mount
XDR™, HG™ or N3W™
Hub

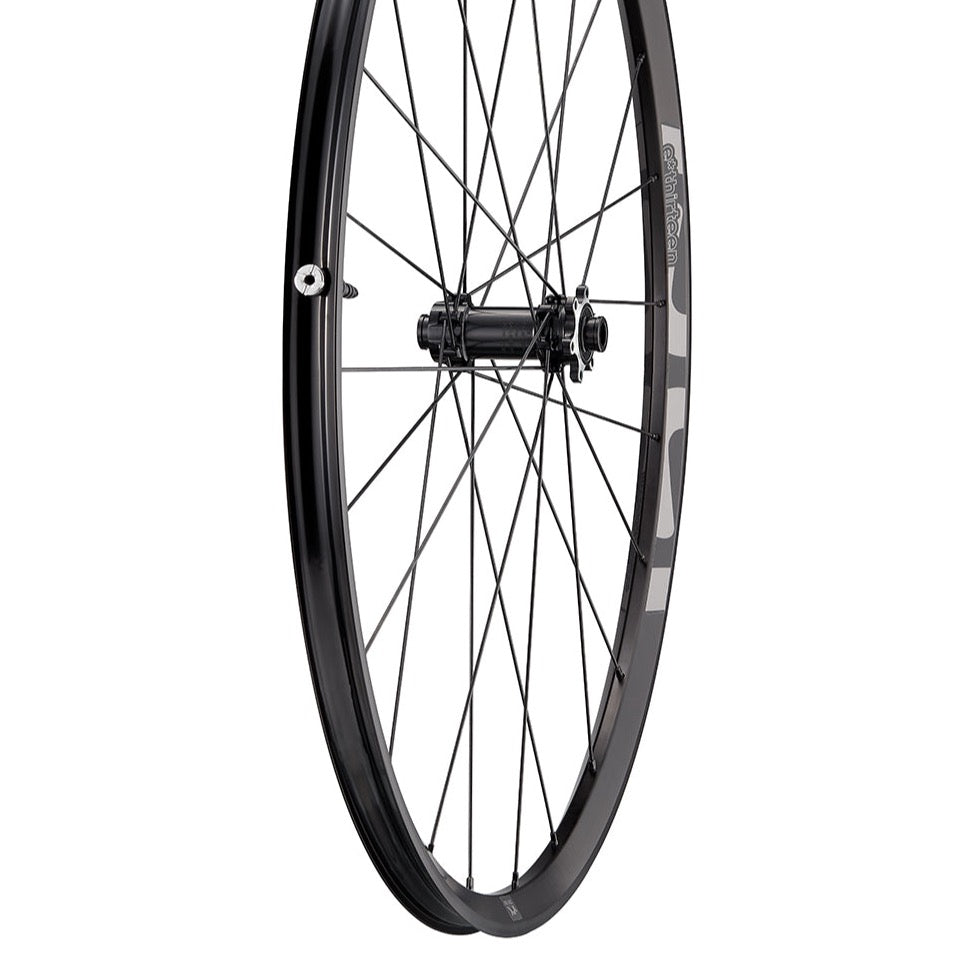

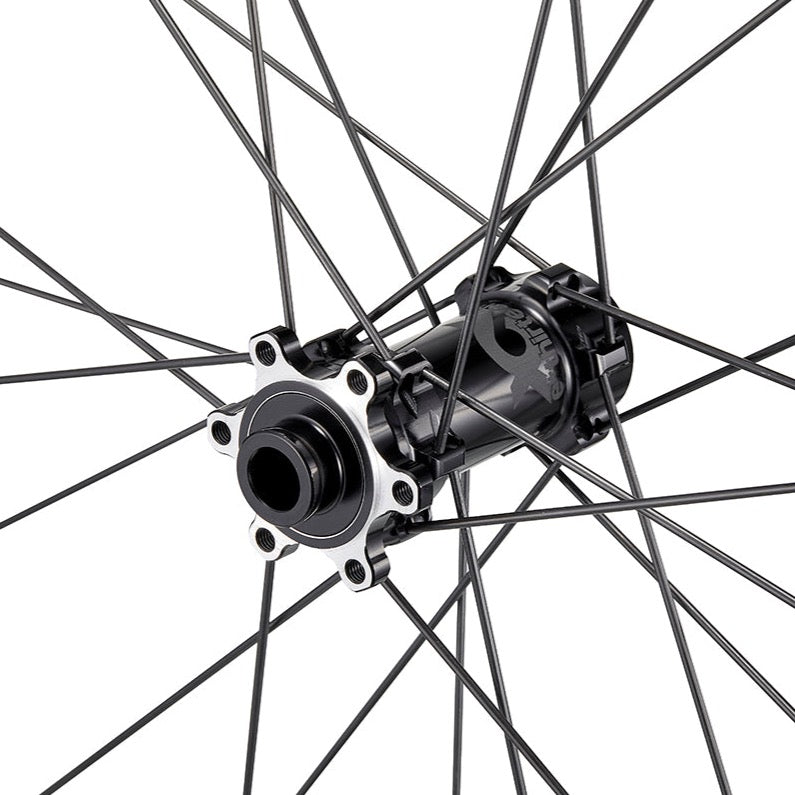

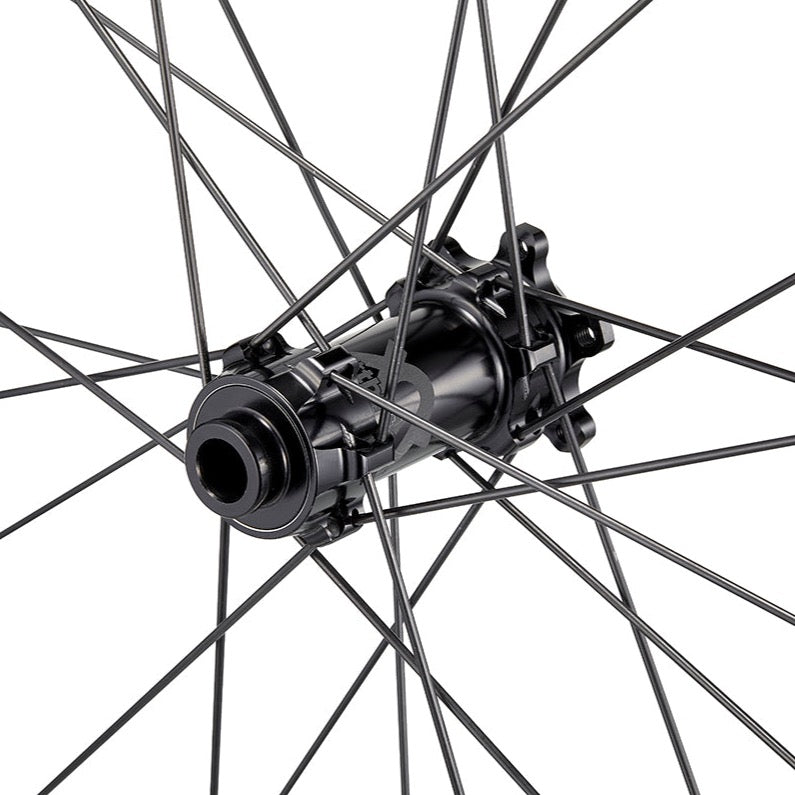

Front: 100 X 12/15, 6-bolt

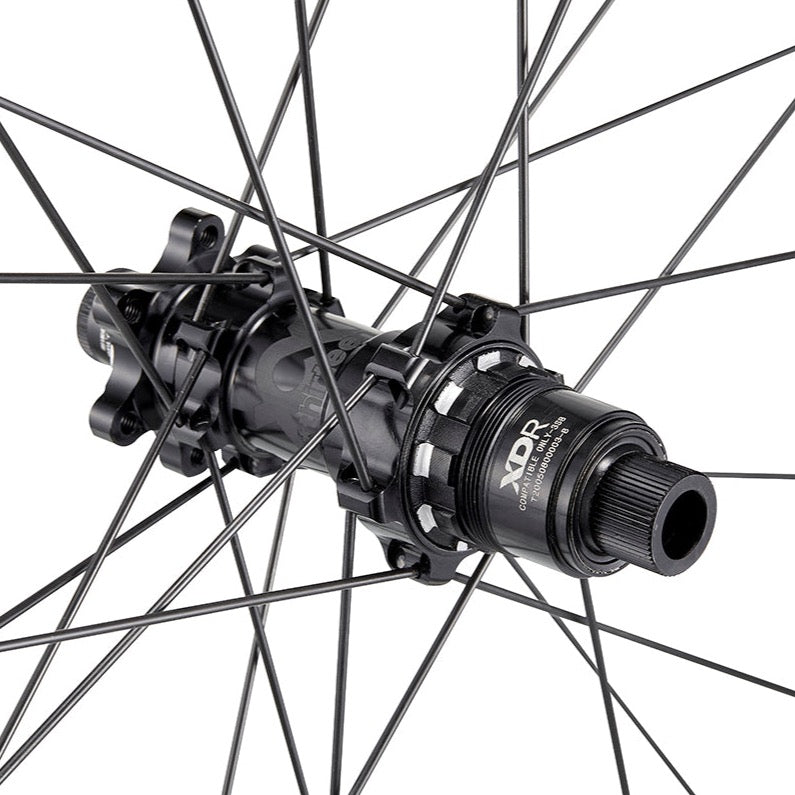

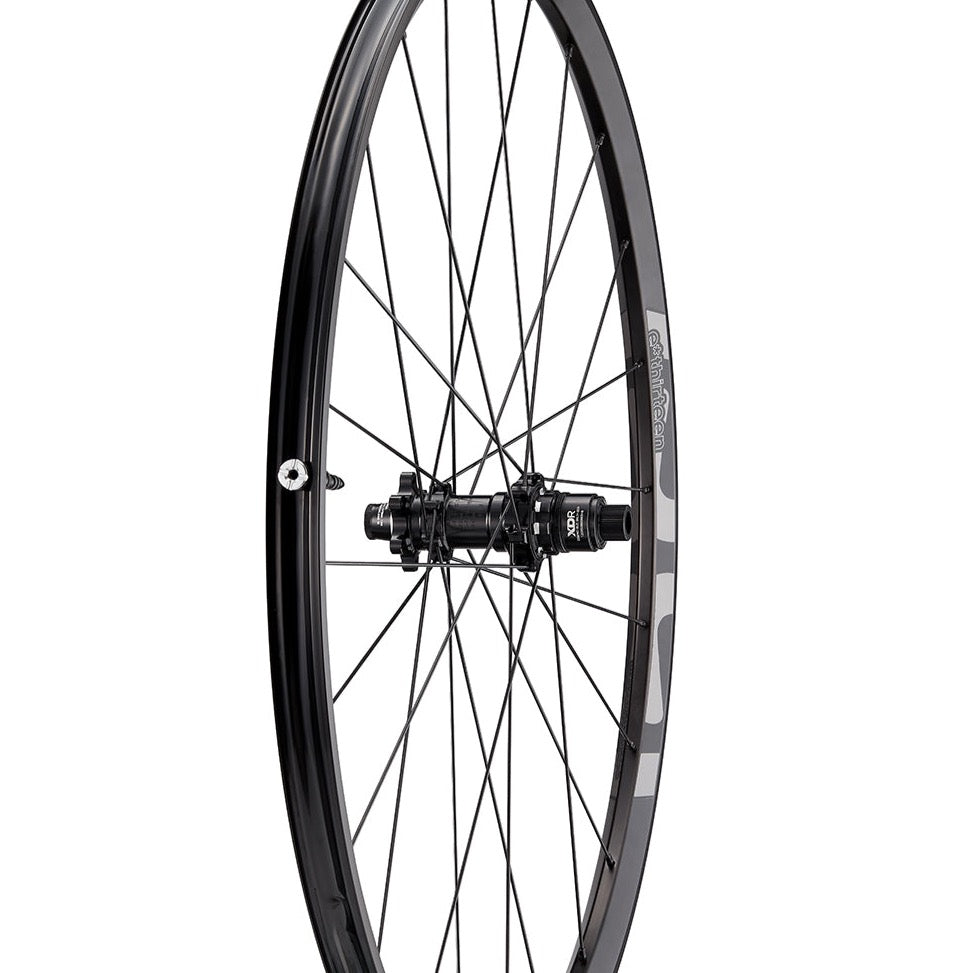

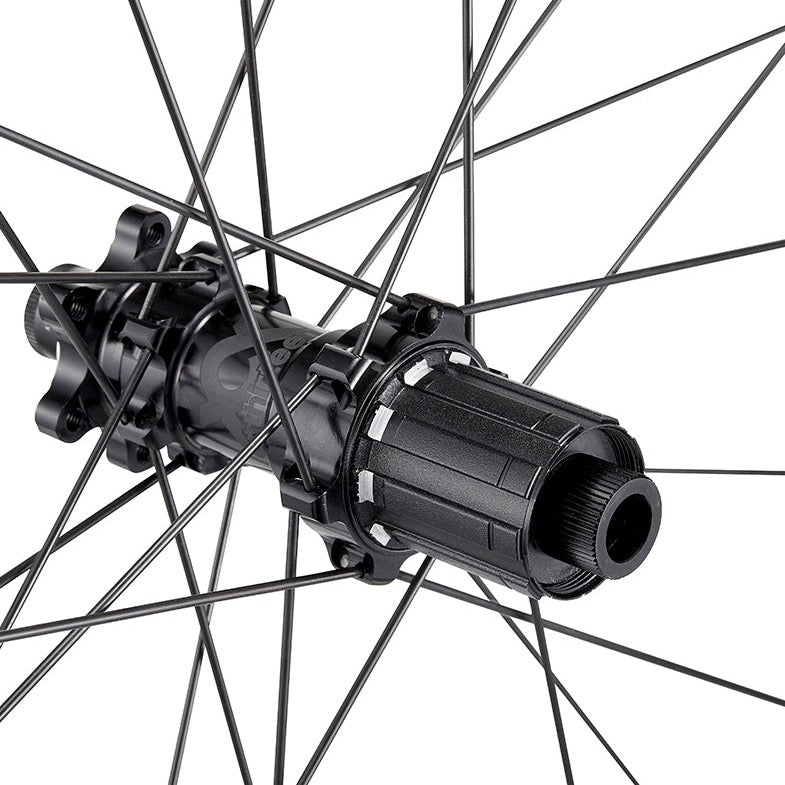

Rear: 142 X 12. 6-bolt
Included
12mm and 15mm endcaps, spare spokes and nipples. Tape and valves installed.
Spokes/Nipples
Straight pull Sapim spokes/Brass nipples
Weight
Single wheel weight w/valves + tape
Front: 835g
Rear XDR: 958g
Front: 835g
Rear XDR: 958g
Width
IW24
Tech Info
User manual
How-to install
Frequently Asked Questions

Guaranteed to be free from
defects in materials or workmanship
for 5 years after original purchase
