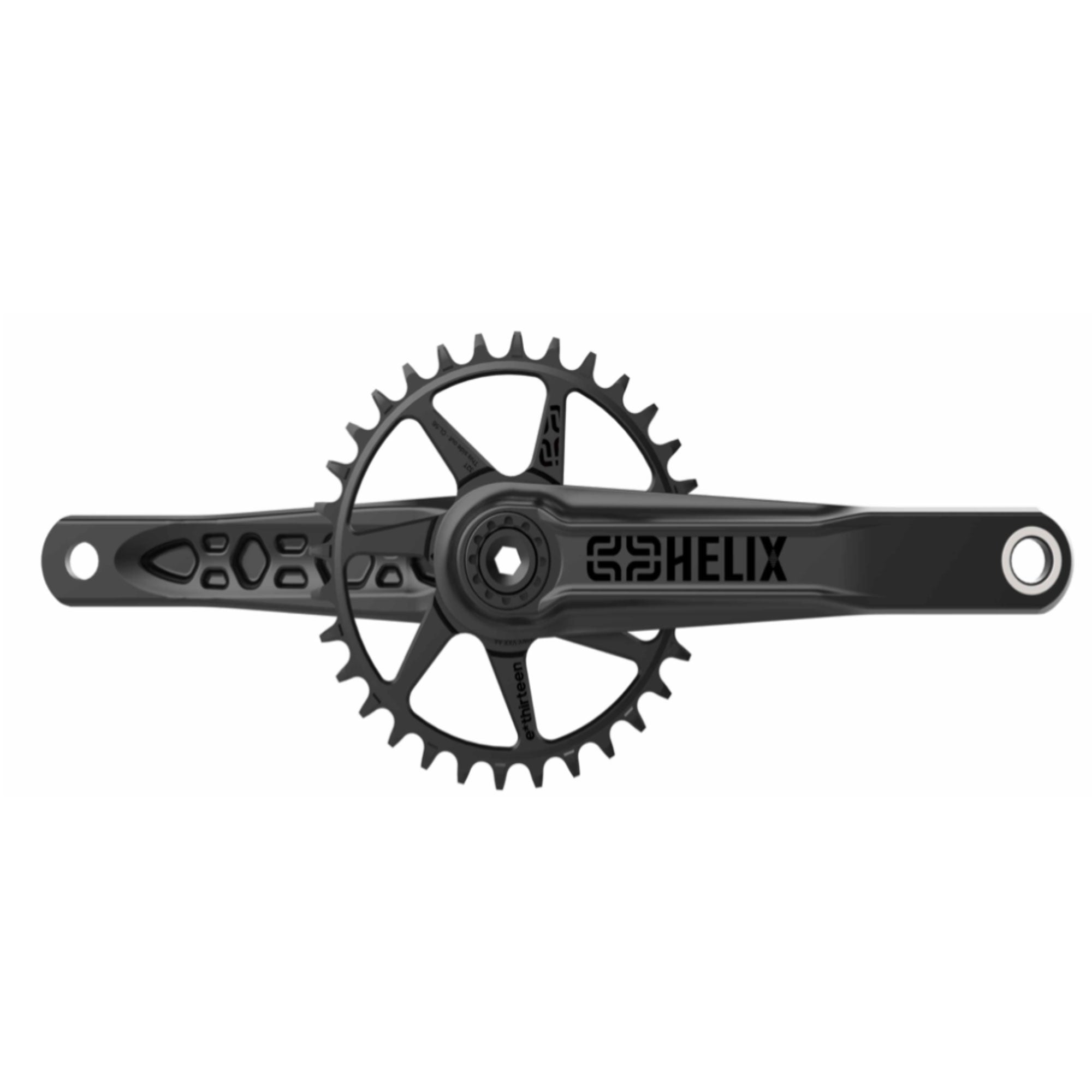

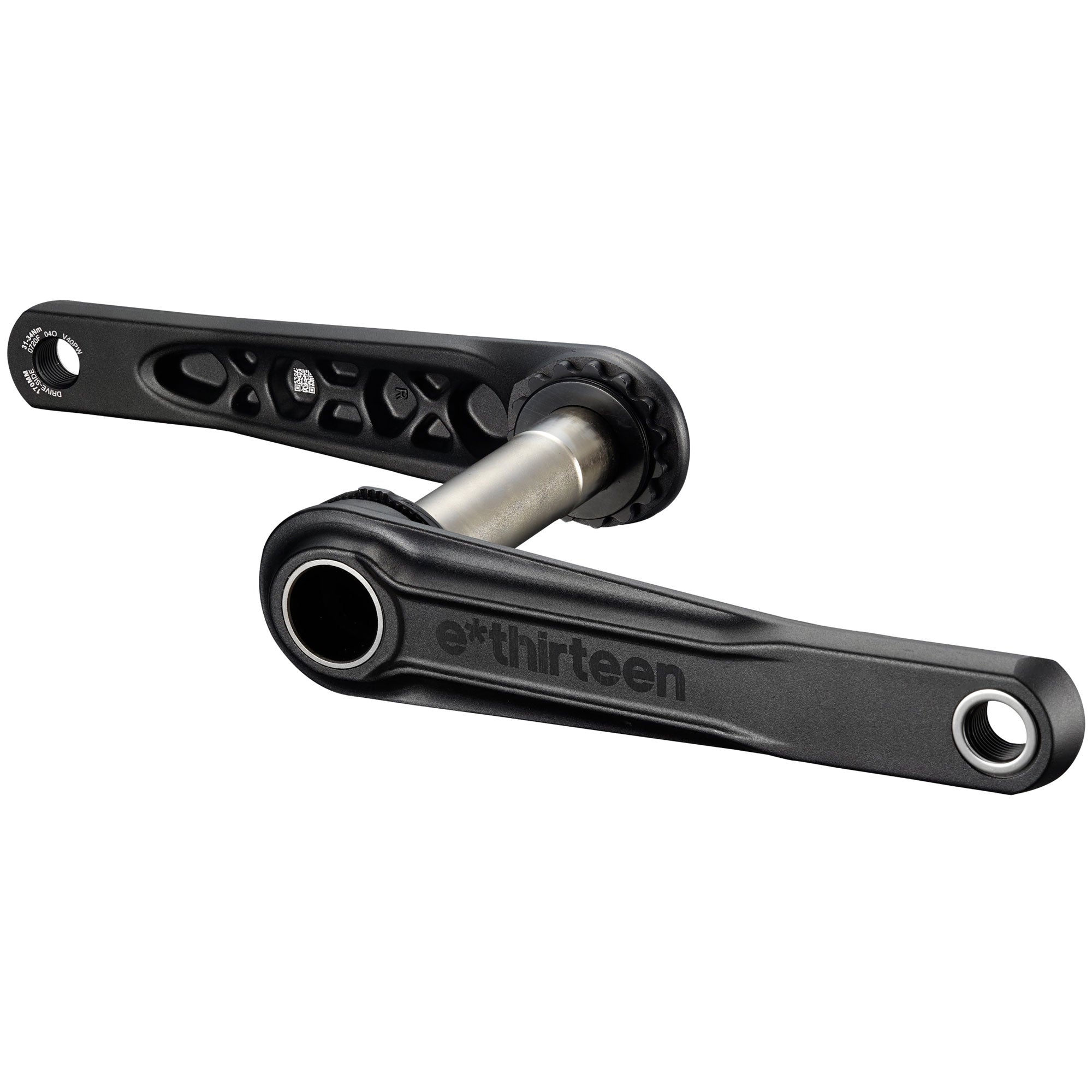

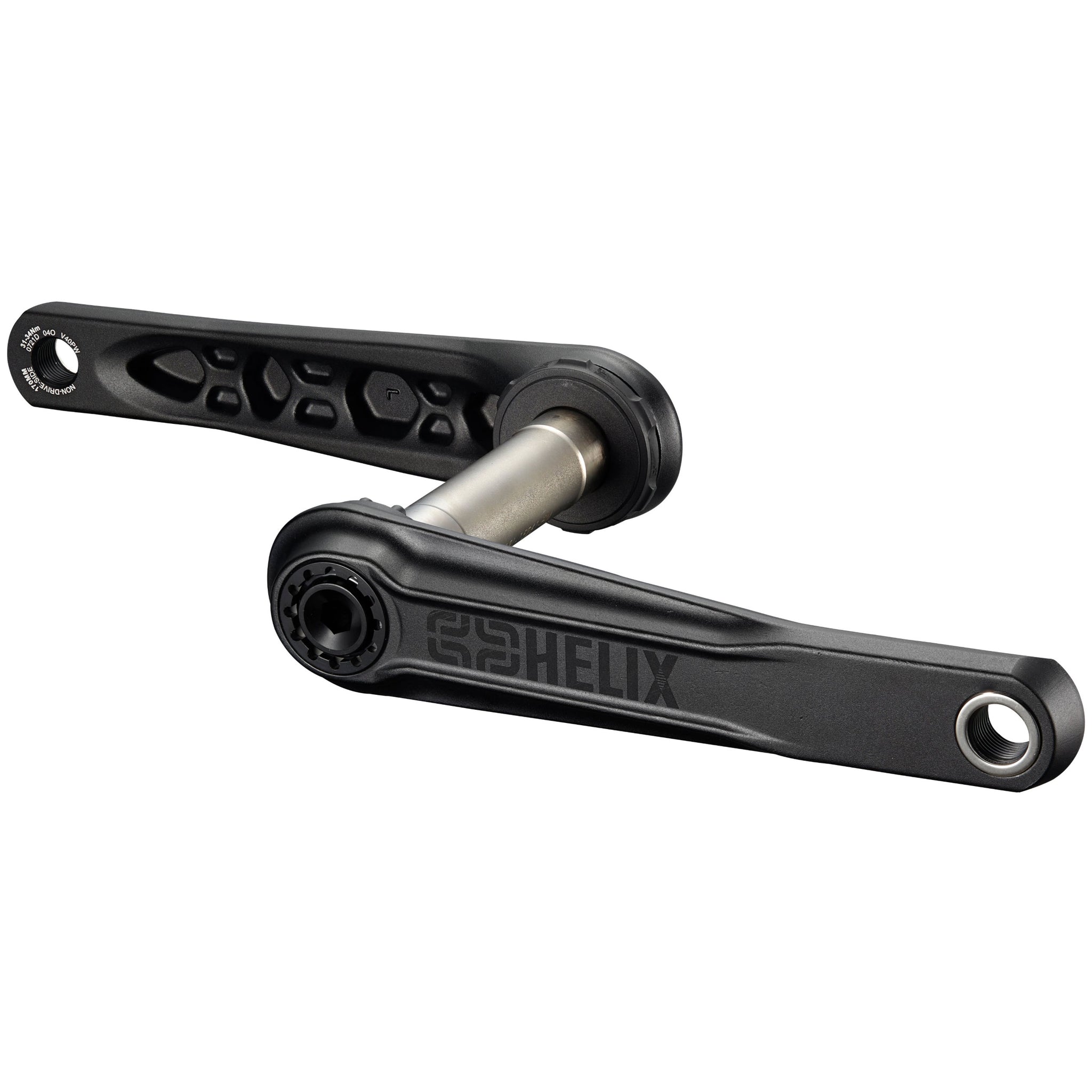

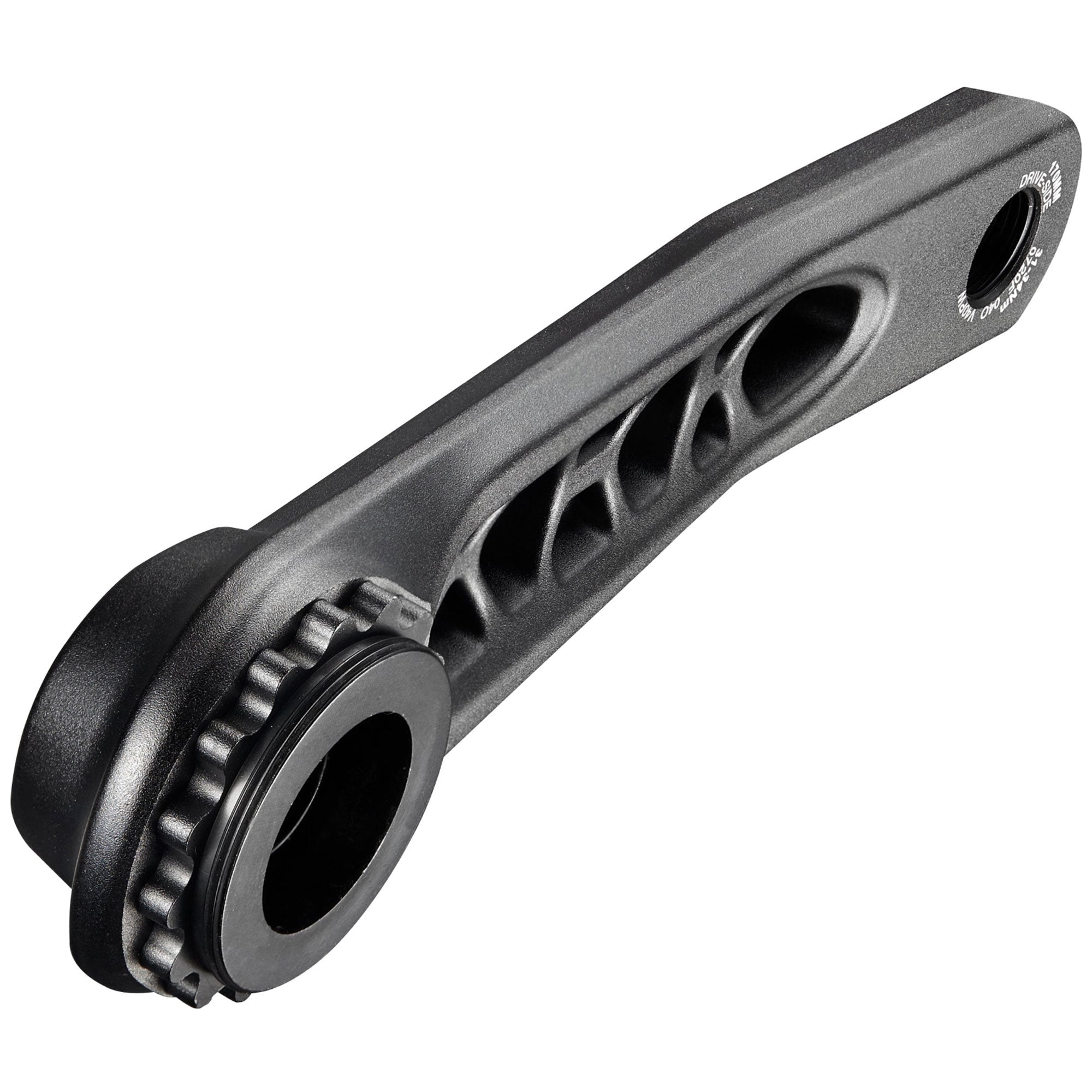

Helix Core Alloy Crank

CS4HBA-100

Lighter, stronger and more value than the competition.

Helix Cranks proven forged AL-6066 alloy for trail weights and Enduro strength and durability. Engineered with weight reduction features into the mold, resulting in a sleek, minimalist aesthetic. CNC cuts further optimize weights for a crank that's equally at home on long singletrack days and for bikepark shuttles. The AL6066-T6 arms are paired with a 24mm heat treated chromoly spindle, resulting in a crankset that hits way over its price point.

Exemplifying cross compatibility, Helix Core Cranks fit with flip-flop Helix R or Helix Chainrings in a range of colors from 28 to to 34t and can achieve both Boost and SuperBoost chainlines, and perform equally well with both SRAM™ and Shimano™ 11 and 12-speed drivetrain systems. Equipped with a self-extractor bolt system, and creak-free proven Quick Connect interface, you get all the benefits of higher-end cranks without a heavy price tag.

Available in 170mm and 175mm sizes
Ultra light, yet rated to enduro loads and impacts at 589 grams in 170mm
Designed to reduce weight with features into the mold, resulting in a sleek, minimalist aesthetic
CNC cuts further optimize weights for a crank that's dependable on any ride

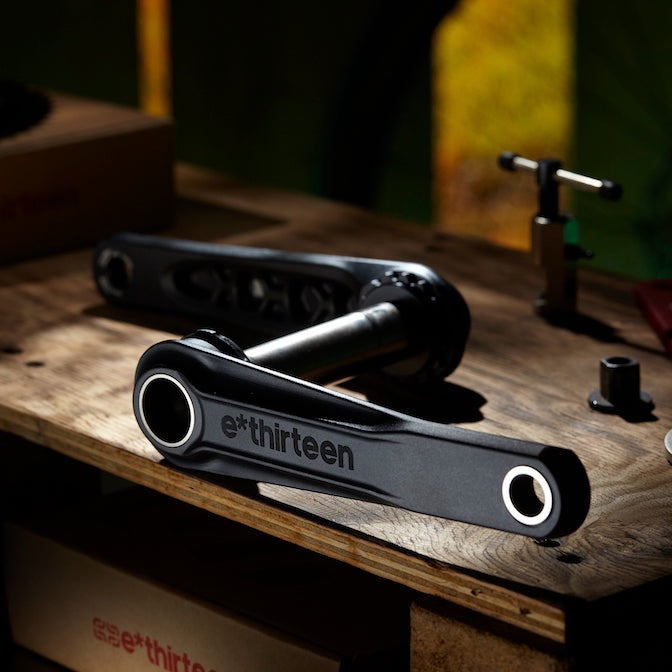

AL6066-T6 arms are paired with a 24mm heat treated chromoly spindle for larger bearings and dependability
Unmatched cross compatibility, Helix rings perform equally well with both SRAM™ and Shimano™ 11 and 12-speed drivetrain systems

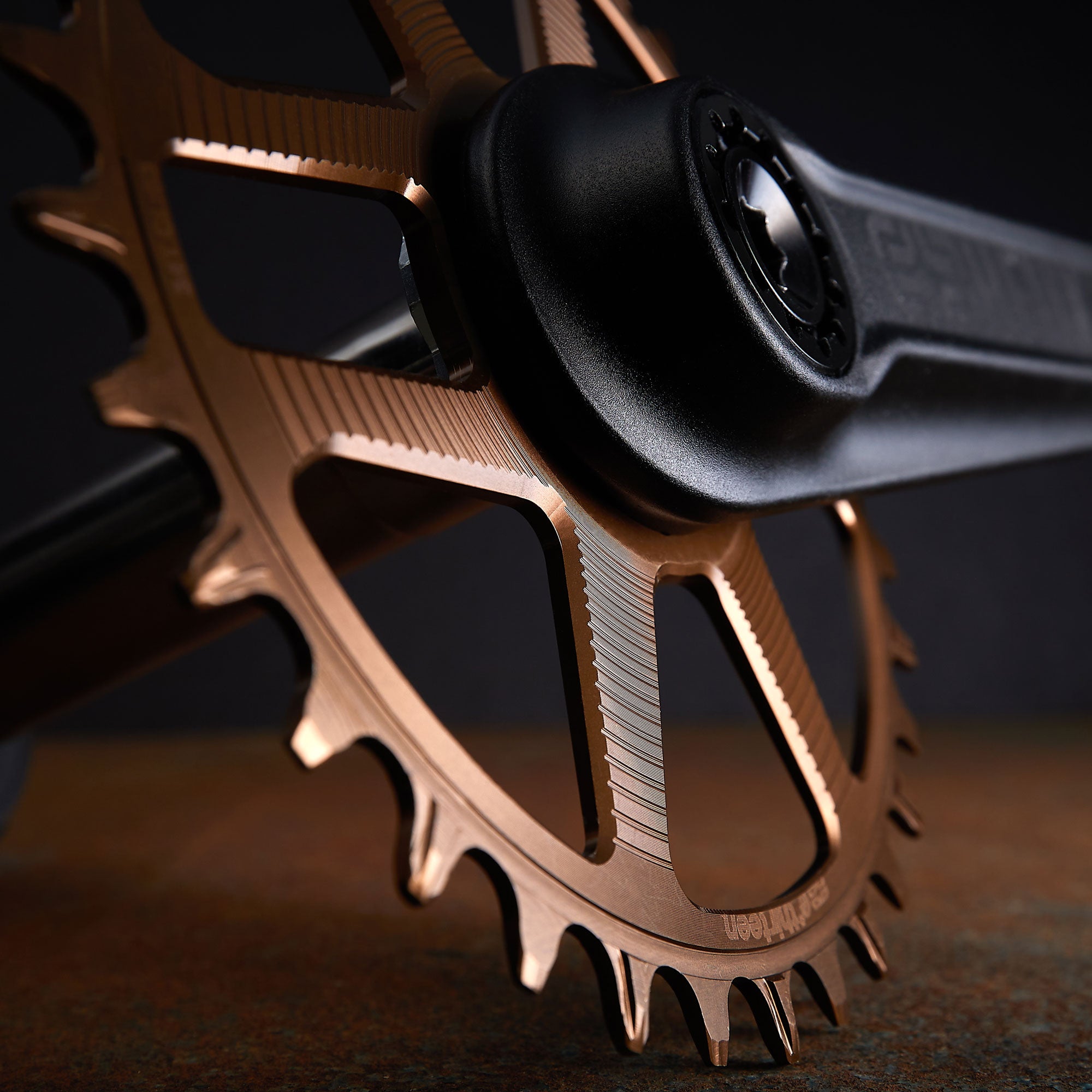

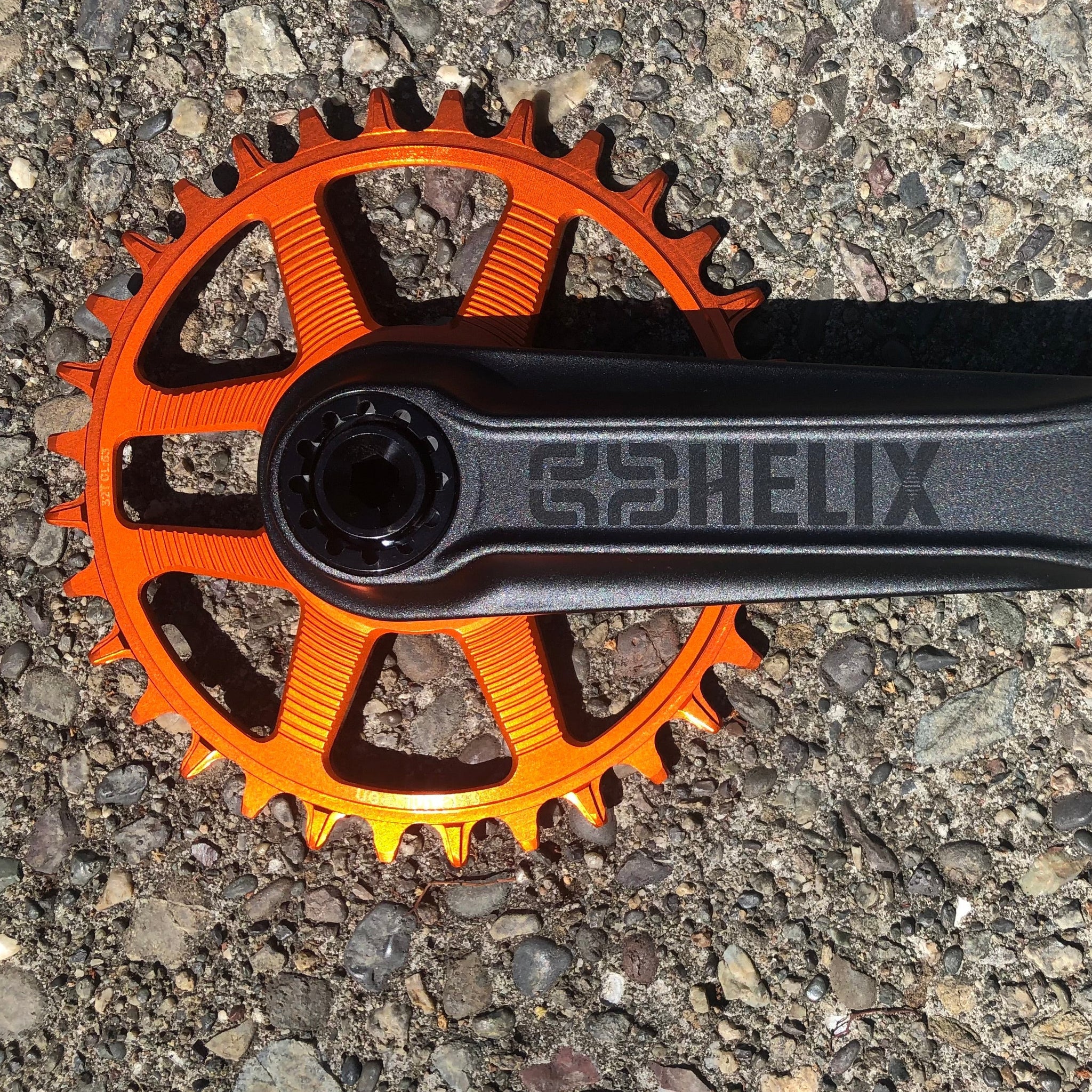

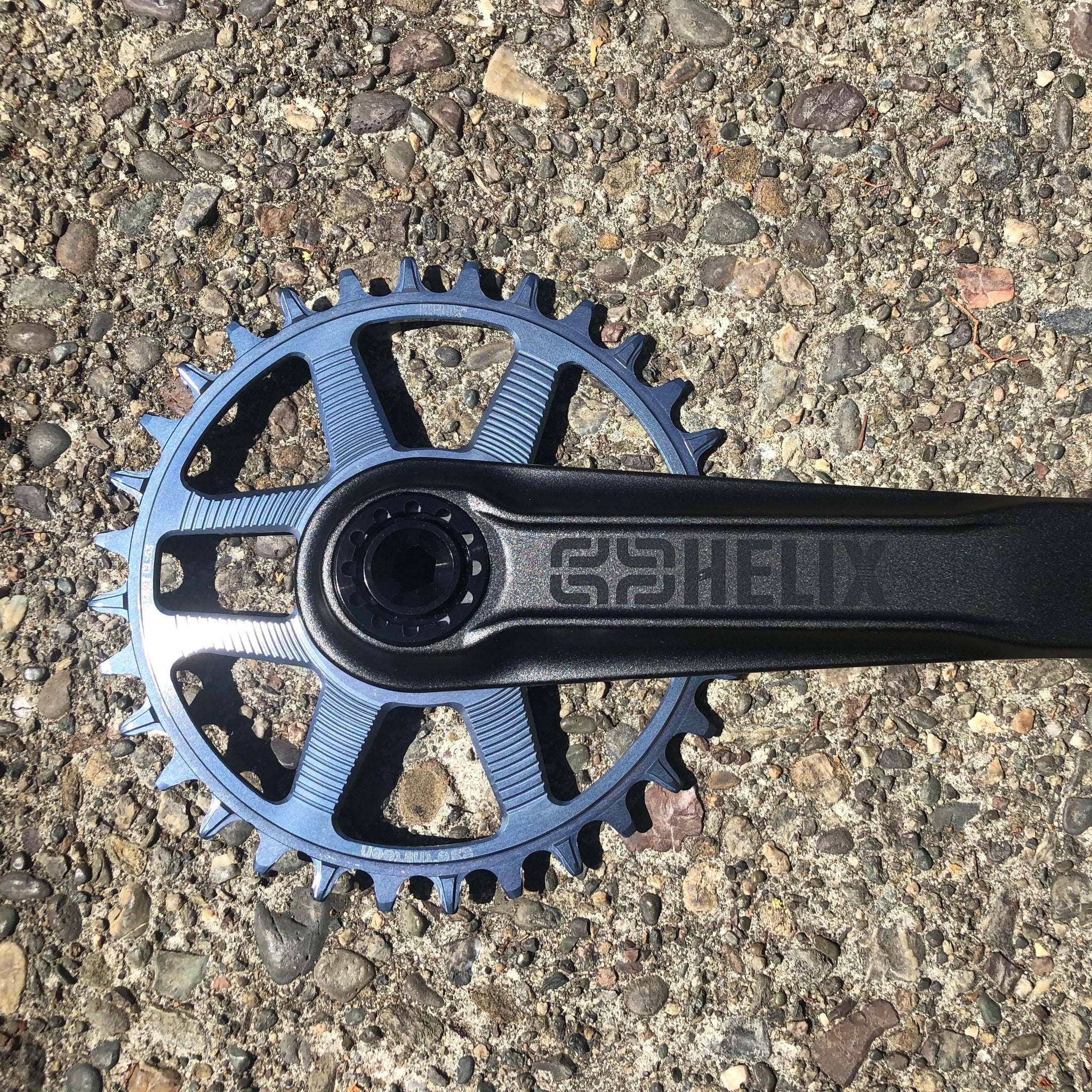

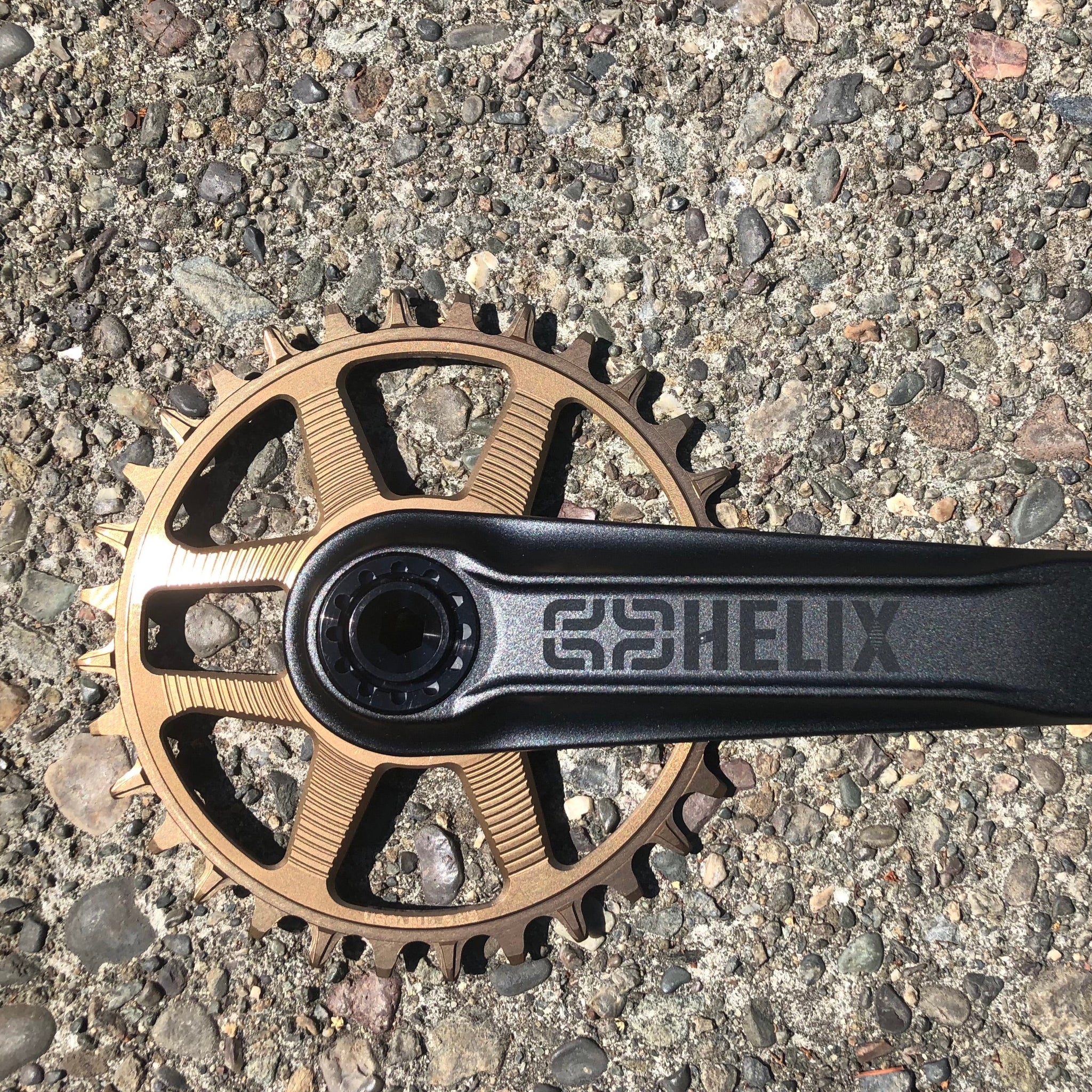

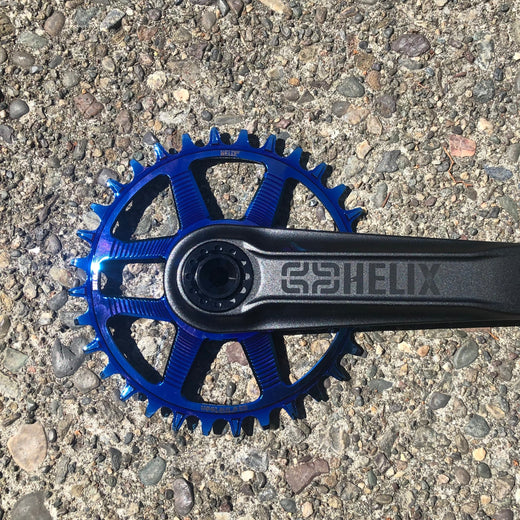

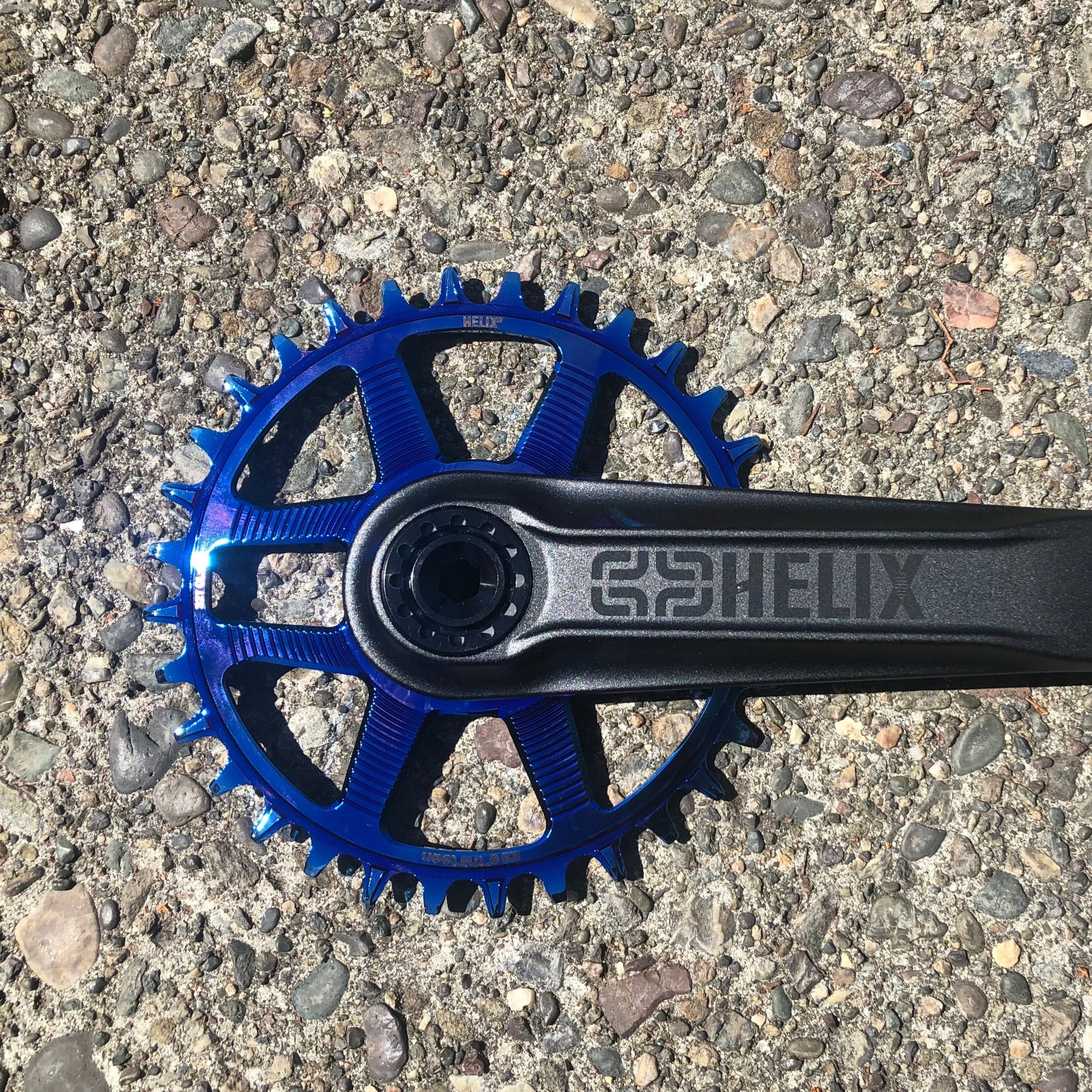

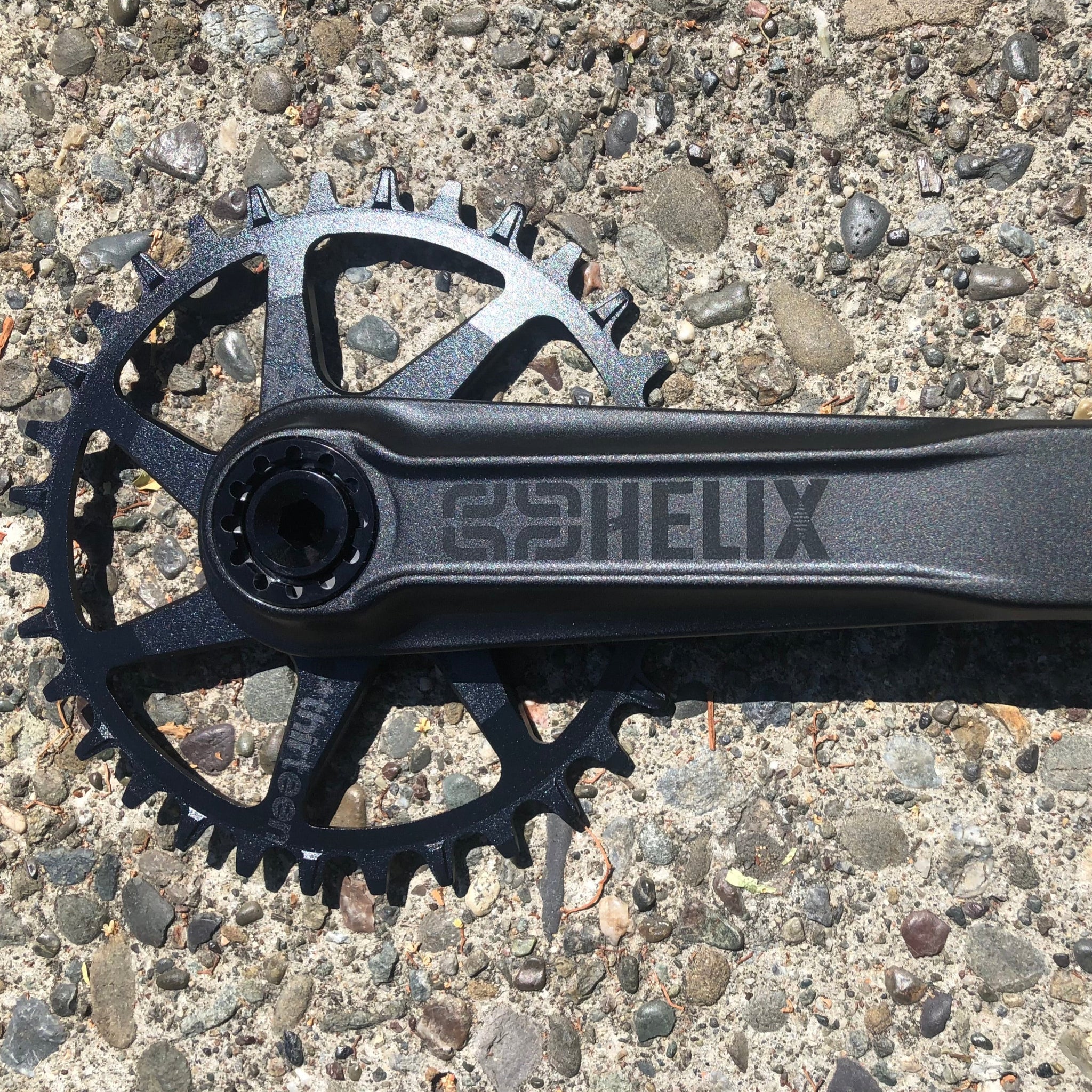

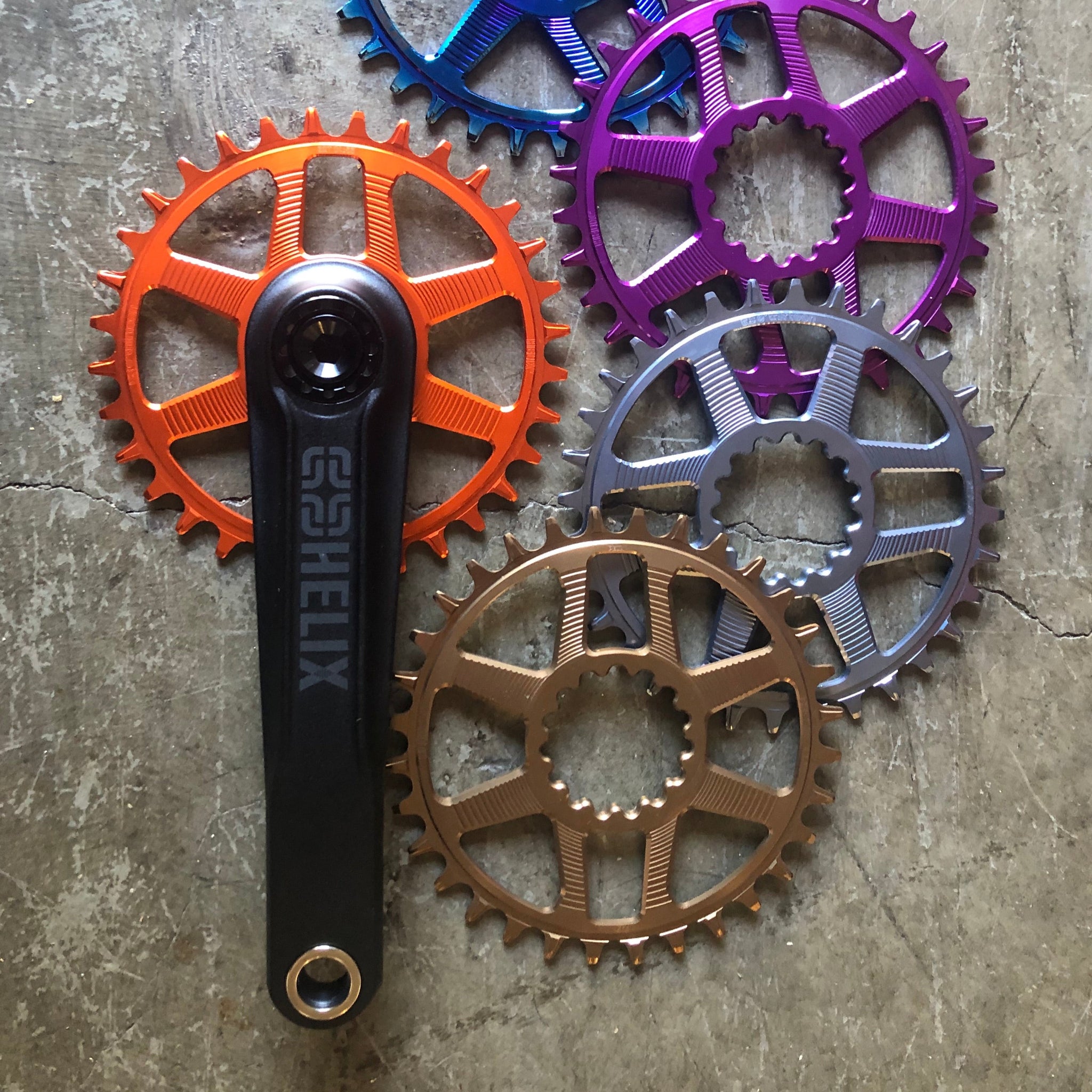

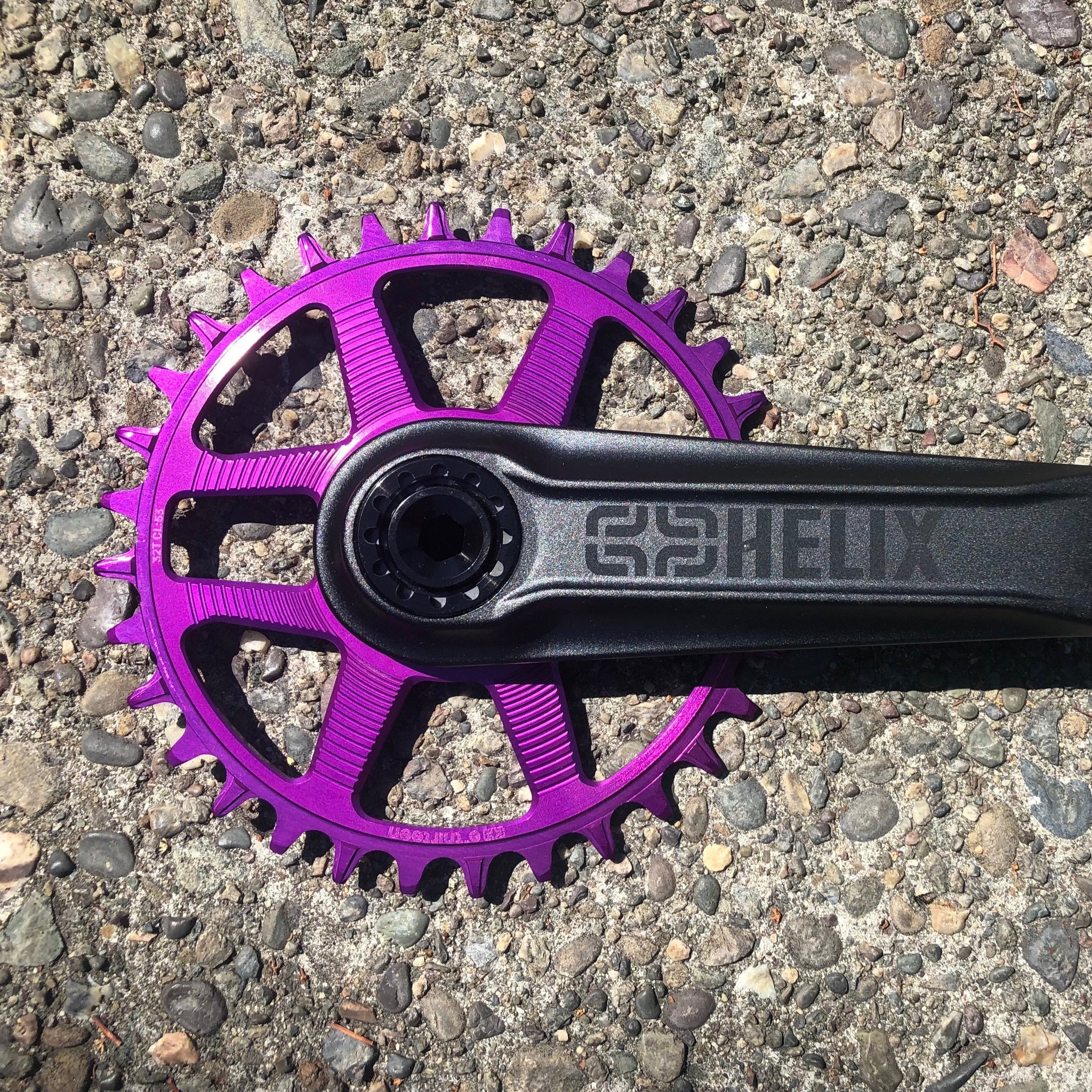

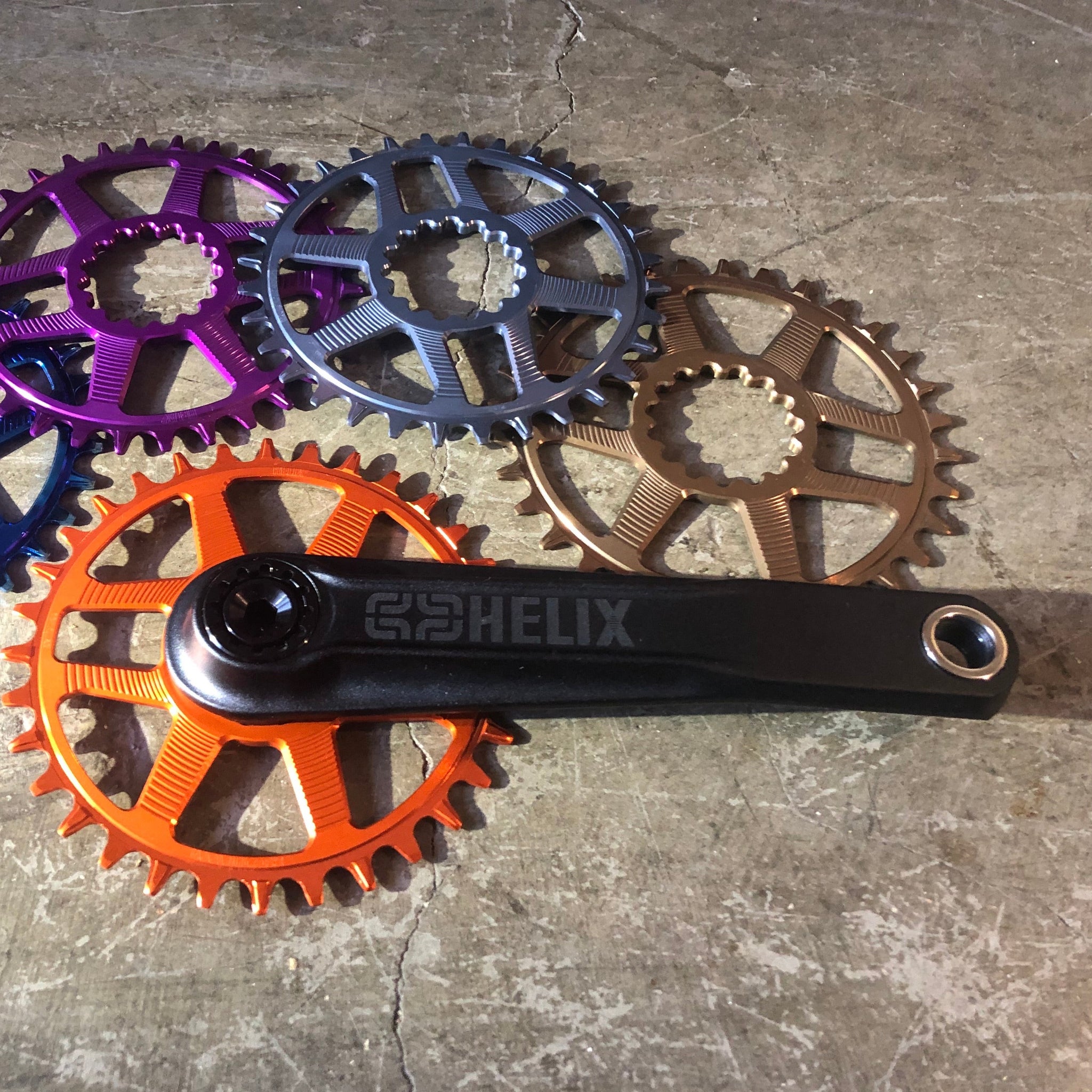

Helix Cranks fit with flip-flop Helix R or Helix Chainrings in a range of colors from 28 to to 34t to achieve both Boost and SuperBoost chainlines

Chainrings are sold separately.

Shipping Policy Free Domestic Shipping at $100.00

Starting at

Regular price: $139.95
Sale price: $139.95

Size

Product Spec

Chainline

Chainline spacers achieve non-Boost, Boost, or SuperBoost. 52/55mm

Chainring

Helix R Direct Mount Chainring, Helix Plus Direct Mount Chainring, Helix Base Direct Mount Steel Chainring

Color

Black

Compatibility

All frames with a 68/73mm BB shell

Features

Spindle on NDS for easy drivetrain maintenance, adjustable chainline, and 8mm self-extractor

Included

Crankset, BB/lockring tool, lockring, APS adjuster, User Manual, and sticker

Length

170mm, 175mm

Material

6066 Aluminum

Self Extractor

Yes

Spindle

Width: 68/73mm

Diameter: 24mm

Interface: P3 Connect

Weight

170 x 73mm: 588g
175 x 73mm: 608g

Tech Info

How-to install

HOW TO INSTALL YOUR HELIX 24MM ALLOY CRANK

Frequently Asked Questions

HELIX 24MM ALLOY CRANK FAQ

Guaranteed to be free from
defects in materials or workmanship
for 5 years after original purchase
