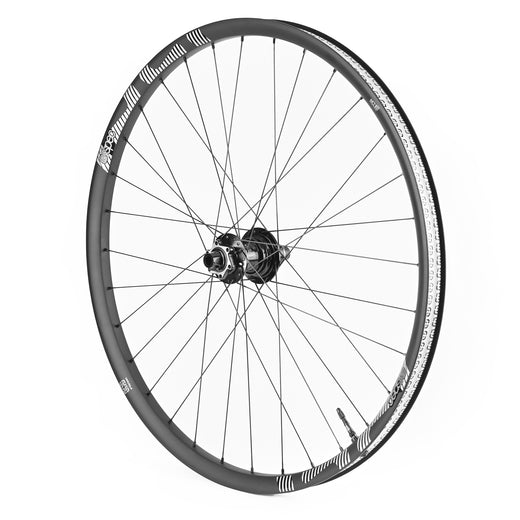

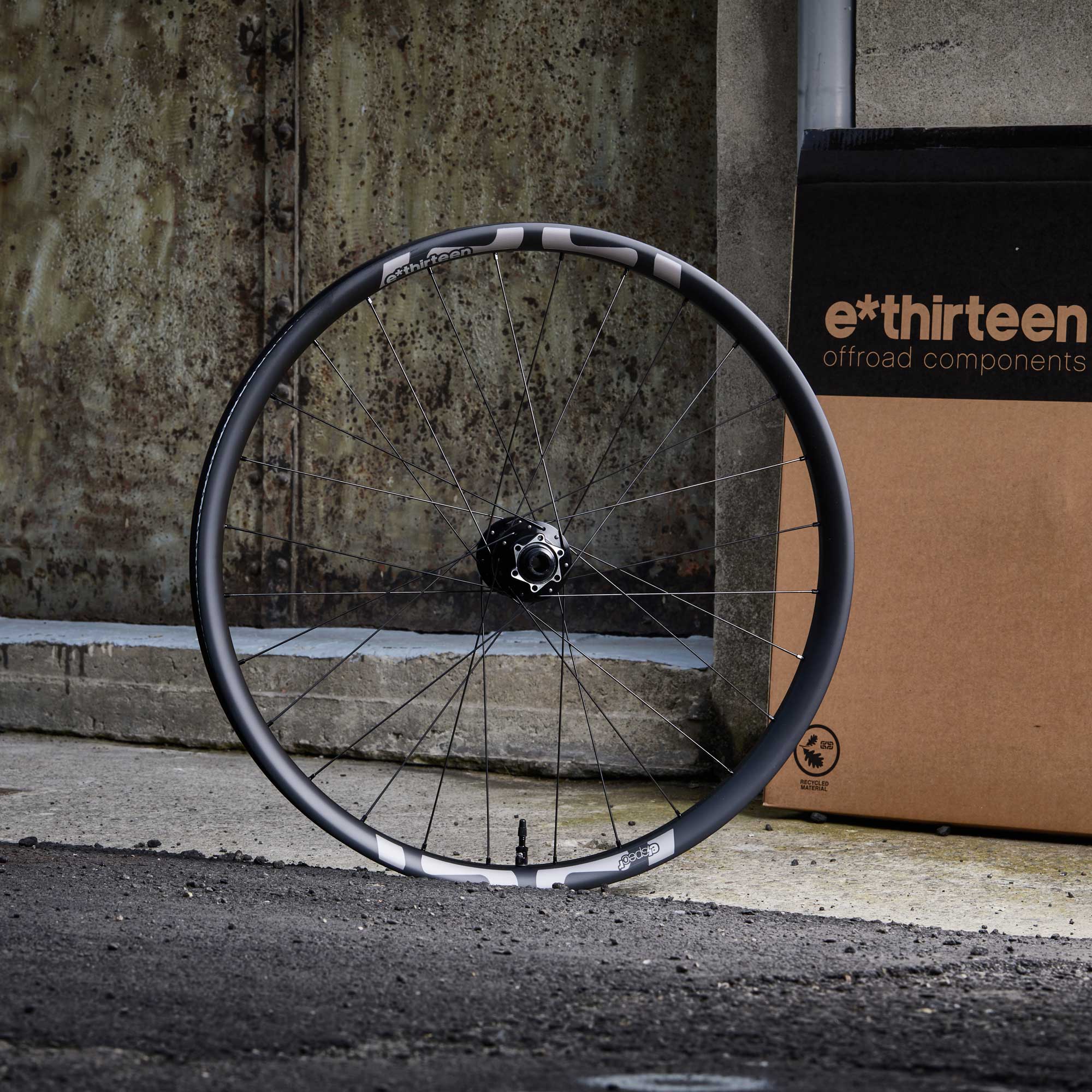

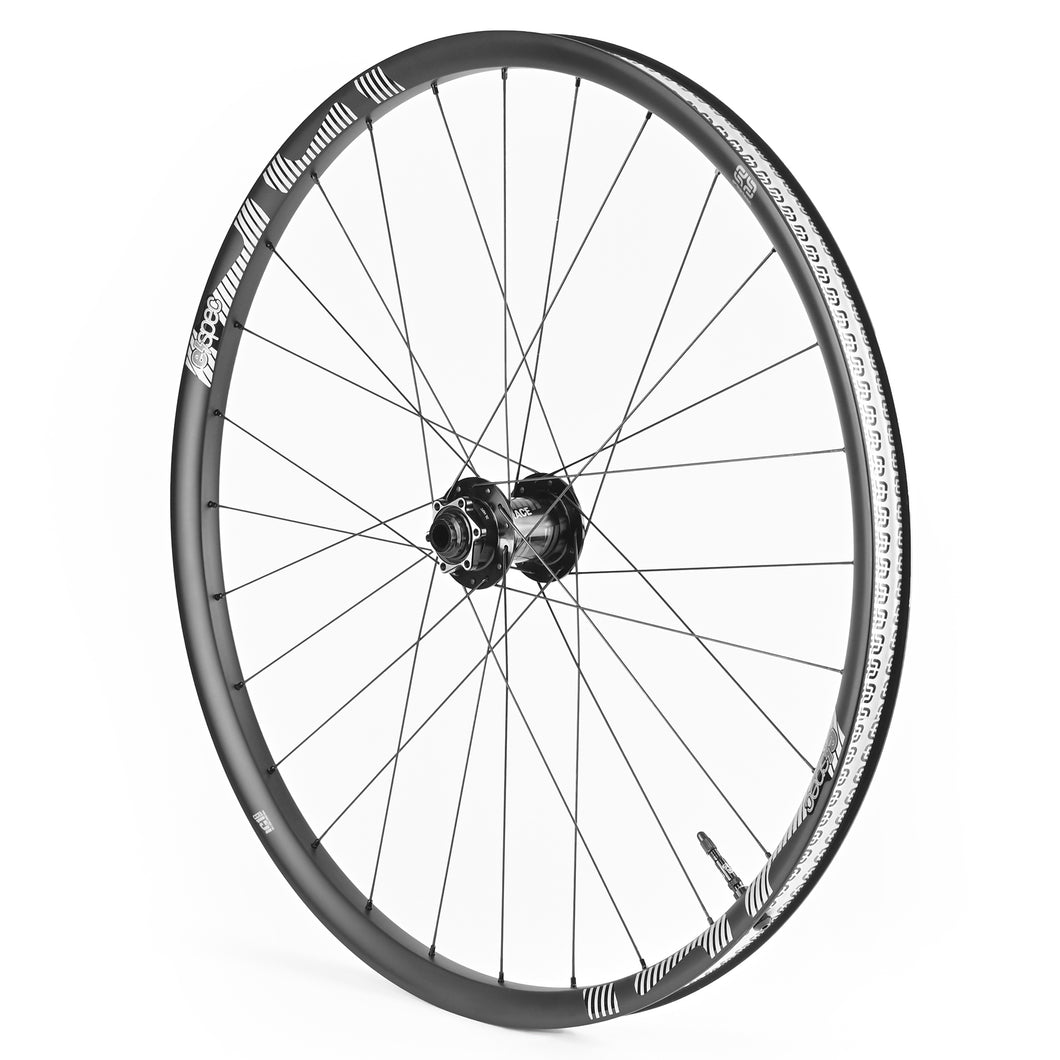

e*spec Race Carbon Wheels

e*spec Race Carbon Wheels

WH4LRA-100
Starting at
Regular price
Sold out
Sale price
$699.00

e*spec is a new category of components designed to withstand the added demands put on components by the extra weight and torque of eBikes.

e*spec wheels use a custom hub that increased dynamic load ratings by 53%, and decreased axle deflection by 37%. e*spec hubs still have 6-degree engagement, but use an outboard bearing to better support the driver body and disperse loads. Mechanicsm is triple-sealed, and uses a steel axle w/pinch bolt to decrease deflection.

All of our e*spec wheels can be used on any regular non-eBike. Wheelsets can be mixed or matched for either full 27.5+, full 29, or jump on the #mulletbus.

Product Spec

Axle
Steel axle w/pinch bolt
Color
Black w/Sticker
Drilling
28h front, 32h rear
Engagement
6 degree
ERD
27.5: 553

29: 594
Features
e*spec hubs still have 6-degree engagement, but use an outboard bearing to better support the driver body and disperse loads. Mechanism is triple-sealed, and uses a steel axle w/pinch bolt to decrease deflection.
Freehub Mount
XD™
Hub

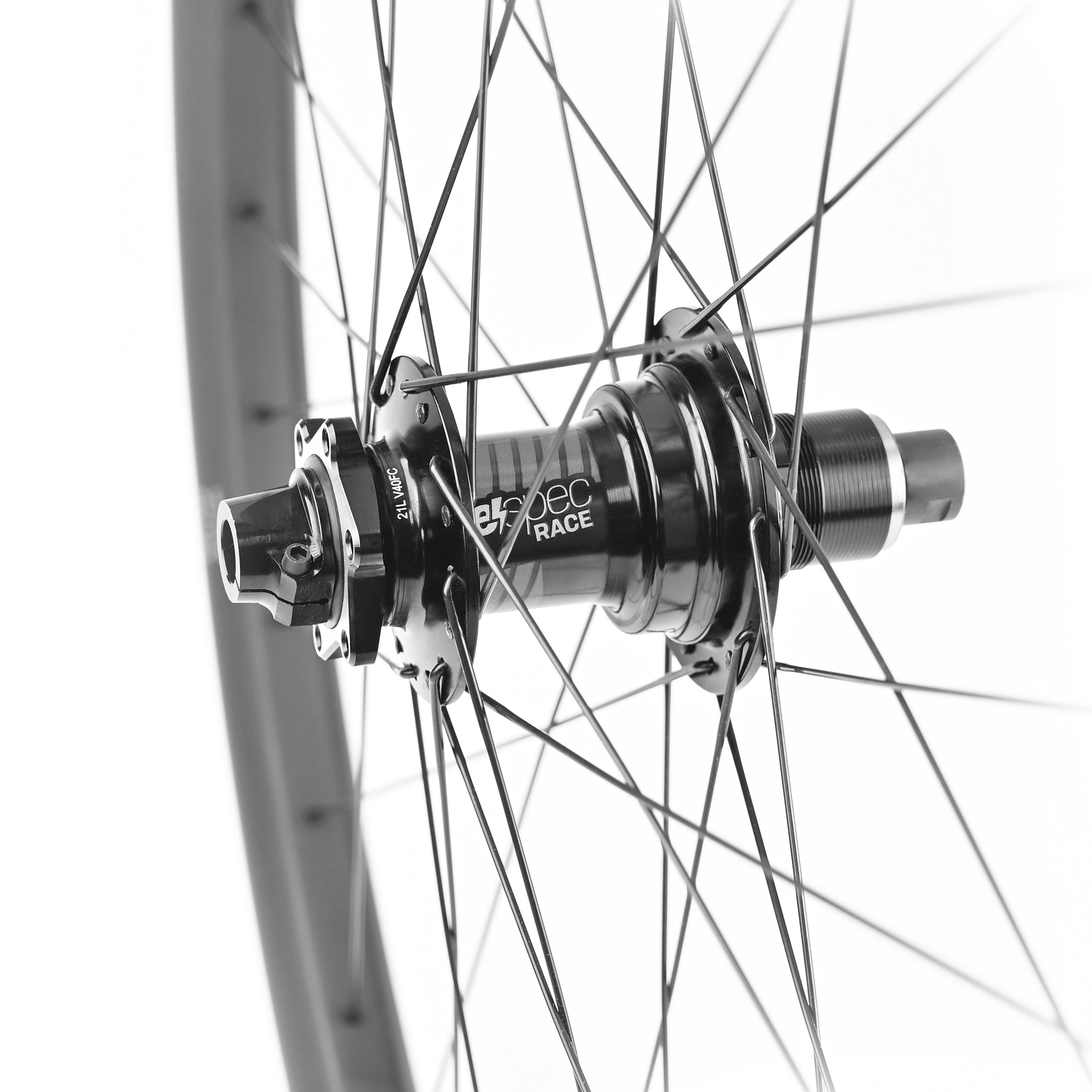

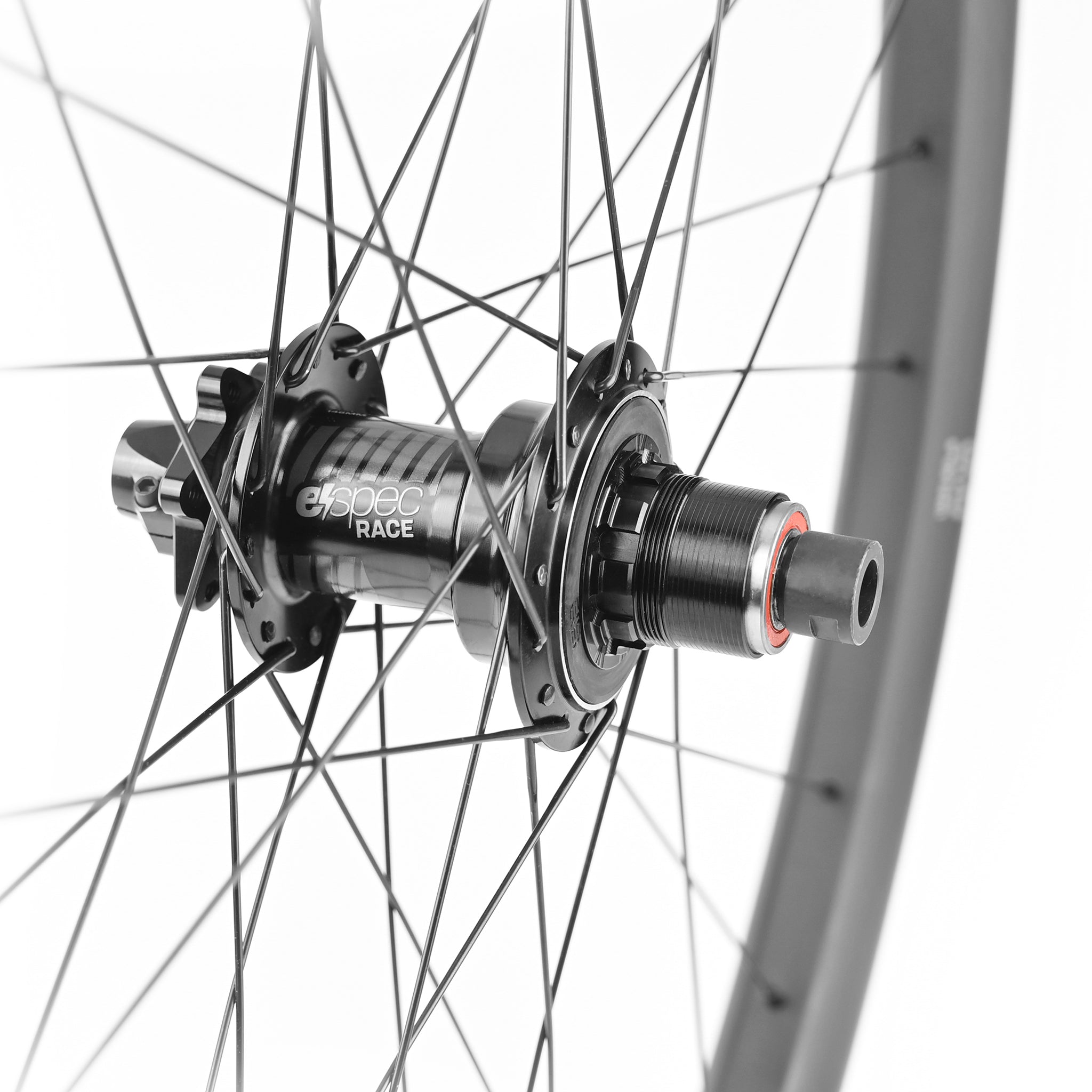

e*spec rear hub, specially designed for eBike use.
Included
Wheels w/driver body (taped w/tubeless valves installed), spoke x3, nipple x3, nipple washer x3,
Material
World Cup developed carbon
Size
27.5, 29
Spokes/Nipples
Custom J-bend, triple-butted spokes w/alloy nipples and nipple washers
Weight
Weight: (w/valves + tape) 2,080g
Width
27.5 Wheel(s): 35mm internal width

29 Wheel(s): 30mm internal width

Tech Info

User manual

Guaranteed to be free from defects in materials or workmanship for 5 years after original purchase
